Dongguan Yujie Electronic Technology Co.,Ltd.

12 Circuit Fuse Holder ATC/ATO Fuse Block Panel with LED Indicator 300A 12 Way Fuse Box

Short Description:

12 Circuit Fuse Holder ATC/ATO Fuse Block Panel with LED Indicator 300A 12 Way Fuse Box with 2 Positive Inputs Negative Bus




  • $15
    50-199
    Piece/Pieces
  • $13
    200-499
    Piece/Pieces
  • $11.8
    500
    Piece/Pieces
  • Product material : 12 Way Fuse Block Blade Fuse Box
  • Total output : DC 12-24V
  • Input current : 40 Amp per circuit & 300 Amp per panel
  • Output current : 20Amp Max. per circuit
  • Product installation range : cars,off-road vehicles,buses,RVs,yachts,boats,etc
  • Product weight : 227 g
  • Type: Blade Fuse Box
  • Size: 3.73 x 4.92 inch
  • LED: Red LED warning light
  • Package / Case: Transparent plastic cover with screw nut
  • :
  • Product Detail

    Certificate

    Product Tags

    ✧ Product Details

    Application:

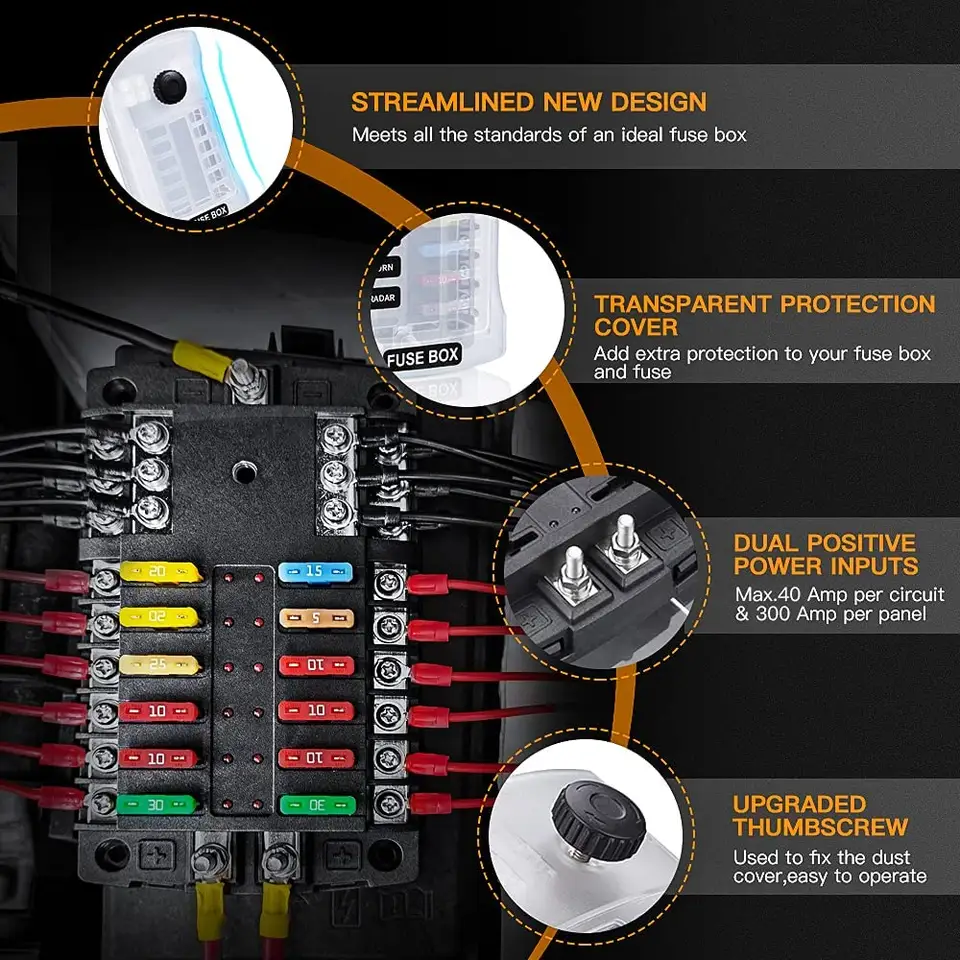

    * ★【NEW DESIGN 12 WAY FUSE BOX】Upgraded 12-Way Blade Fuse Block accepts standard ATC/ATO(middle size) fuses. 12 Circuits with Dual Positive Power Inputs and the Negative Bus to make your circuit clear at a glance. This device is intended for branch circuit protection and has good conductivity. Max. 60V DC operating voltage. Max. 40 Amp per circuit & 300 Amp per panel.

    YJ FB608 (2)
    * ★【LED WARNING INDICATOR & SAFE MATERIAL】Red LED warning light will light up immediately when the corresponding fuse is blown. It is both safe and easy for you to check and replace the blown fuse. Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant.

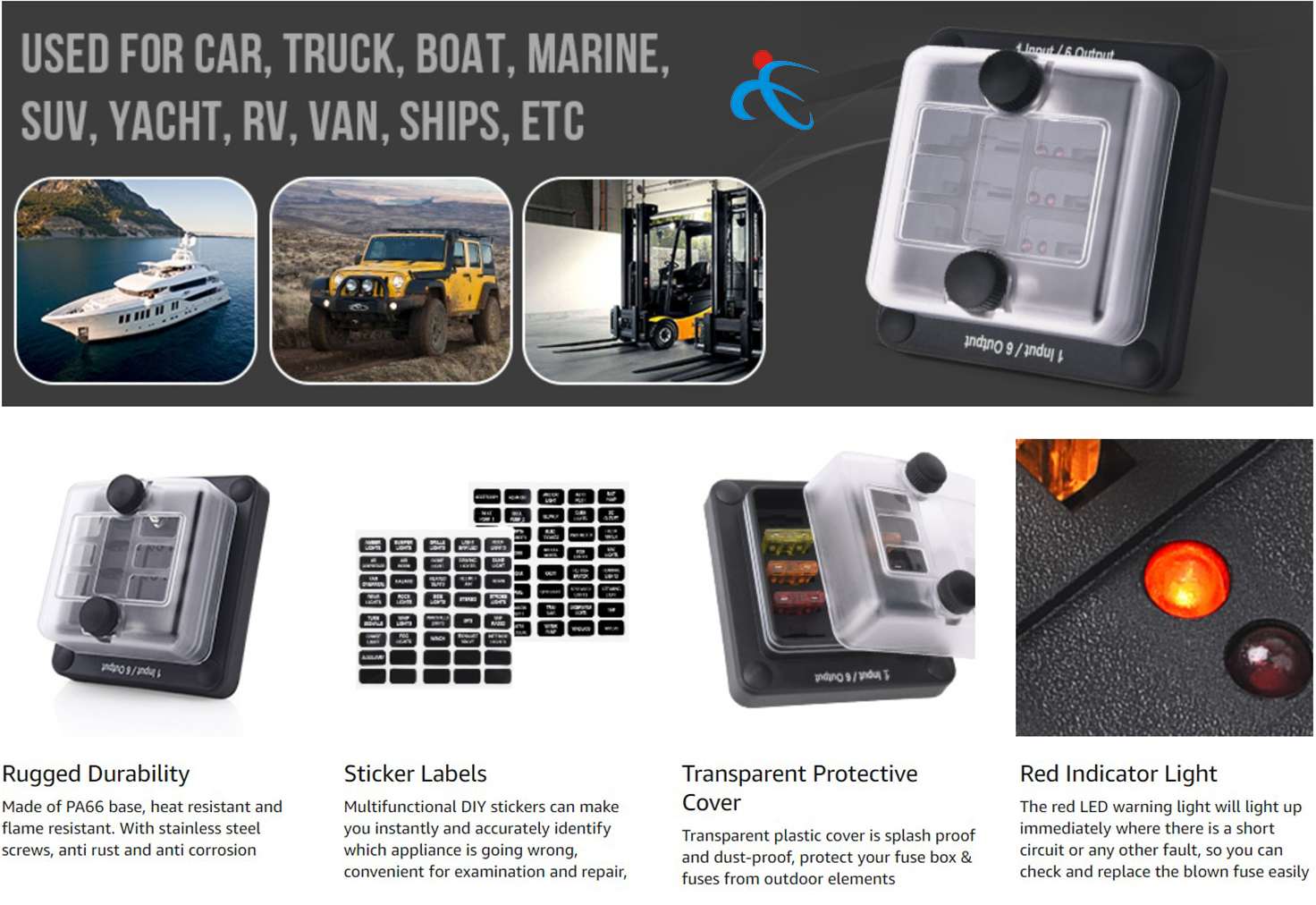

    * ★【PROTECTION COVER & SPARE FUSE SLOTS】Transparent plastic cover with screw nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses. Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor. Spare fuse slots design, convenient for the storage of spare fuses.

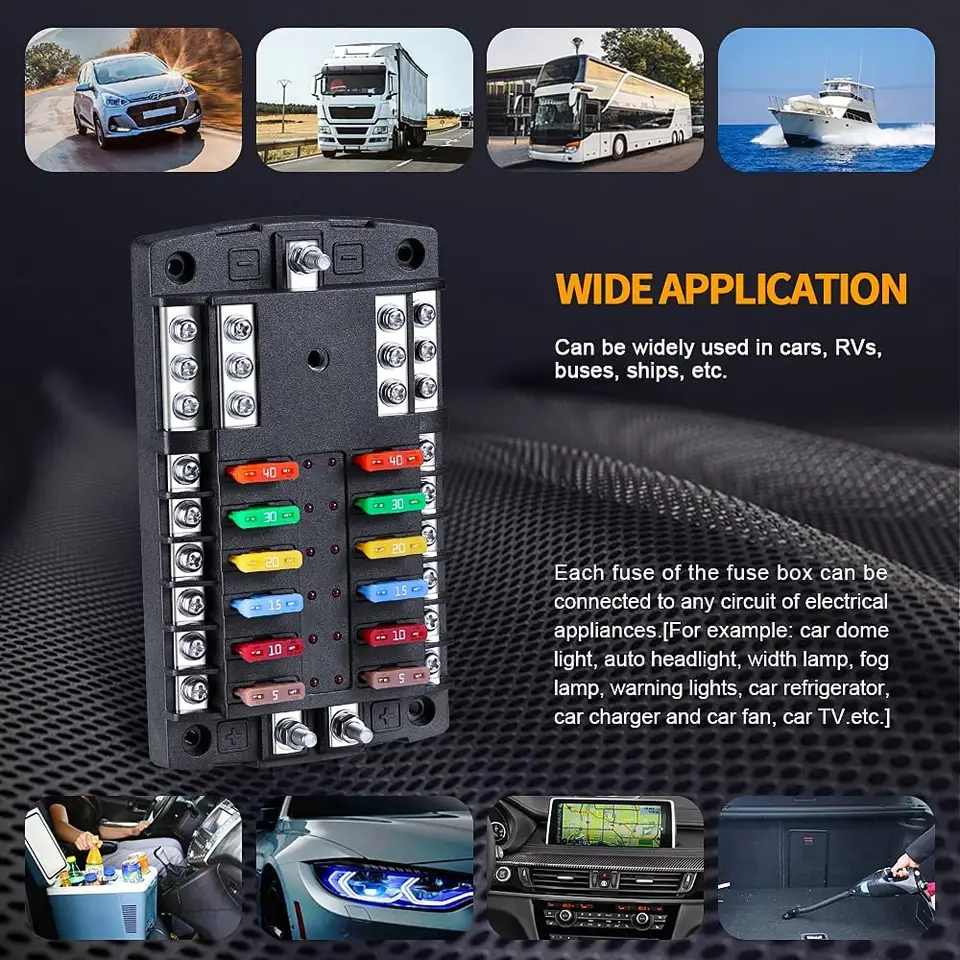

    * ★【WIDE APPICATION】This 12 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc. Each fuse of fuses box can be connected to any circuit of electrical appliances. For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.
    YJ FB608 (4)
    YJ FB608 (6)

    ✧ Specification

    Circuits  12
    Single line :Terminal Rating  M4 threaded studs(40A60VDC.max)
    Maximum Voltage  24V DC
    Single line :Wire Size   #12-16 AWG
    Main line :Terminal Rating  :M5 threaded studs(300A 60V DC.max)
    Recommended Torque  24 in-lb (2.71 N·m)
    Screw Terminal Torque  18 in-lb (2.03 Nm)
    Screw Terminal Type  #8-32 Screws with captive star lock washer

    ✧ Products Description

    8way fuse box



    固定详情长图
